scitq model and base API

scitq model

scitq is base on a simple database model. At the heart of scitq is the notion of:

• task
• and worker

and without surprise, you'll find they are the two main tables of the database.

The schema include also three other tables:

• signal: a simple object which is only used to send signal to tasks (like the pause, the stop or the kill signal),
• execution: this is an important object: task can be executed several times and each execution may succeed or fail and have different outputs. Also an execution occurs on a specific worker,
• requirement: a simple task association table to implement dependencies between task, a notion at the heart of scitq.worklow, see below.

Since v1.0rc10, a new table, job, has been added to follow internal tasks (like worker creation and destruction):

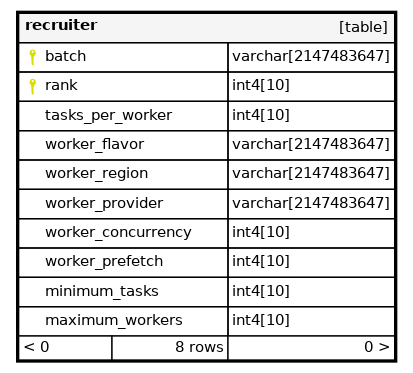

Since v1.2, a new table, recruiter, has been added to allow dynamic worker allocation for tasks (new deployments and recycling of workers). This component is also used by scitq.workflow

The recruiter objects are more abstract than other objects and trigger some worker management behaviour, their downlevel use is explained at the end of this document, see recruiter objects. However they are best used with the higher level Workflow component.

Execution are not accessible simply using the GUI or the command line utility. That is because in the vast majority of cases, the only execution that matters is the last. If a task failed, was re-excuted and succeeded in the second execution, why it failed the first time is now of lesser interest. However it is still in the database and we will learn here how to access that.

A direct interaction with the database must be used with caution since of course you could do anything. However there are specific cases (notably massive update of commands) where it may be extremely efficient. These are discussed in Using sql directly chapter of troubleshoot.

API

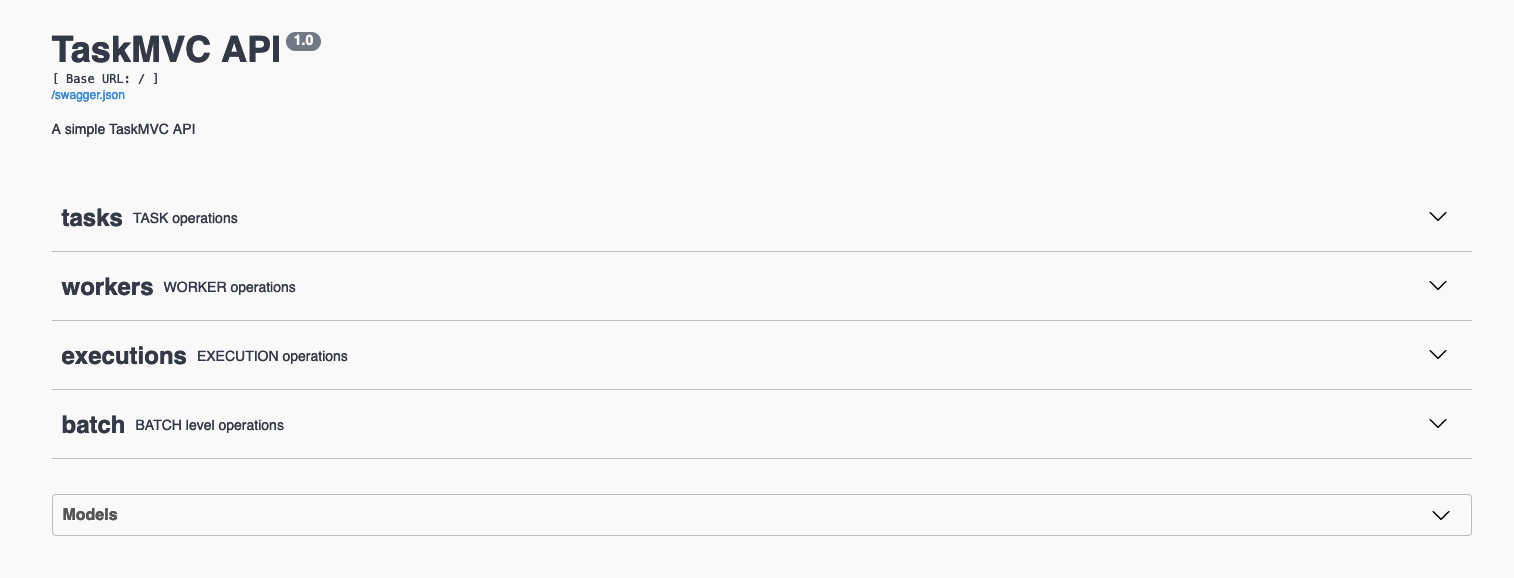

The API is a full REST API (operated using the excellent Flask RESTX package), and it is fully exposed on http://<your scitq server>:5000/ :

If you deploy any tab you'll be able to see the API details, for instance if you deploy the task tab, you will see the different REST verbs available:

And for instance, you can see what getting the task list will look like:

And now for something usefull we can list the different executions:

Note that you have a swagger.json link at the top which can help you create a client for the API. However if you plan to create a Python client, do not bother with that there is one ready made for you, and it is the next and last topic of the documentation.

scitq client (scitq.lib)

Basic usage

In the following example, we connect locally to the server (the address is thus '127.0.0.1') but scitq.lib is a REST client so it can work remotely provided the network access is granted (see security):

from scitq.lib import Server
from pprint import pprint

s = Server('127.0.0.1')
pprint(s.workers())

[{'batch': 'Default',
  'concurrency': 1,
  'creation_date': datetime.datetime(2023, 4, 4, 7, 23, 52, 920295),
  'hostname': 'bioit',
  'idle_callback': None,
  'last_contact_date': datetime.datetime(2023, 5, 16, 20, 6, 35, 62751),
  'load': '0.1↓ / 0.0',
  'memory': 4.0,
  'modification_date': datetime.datetime(2023, 5, 16, 19, 36, 39, 770733),
  'name': 'bioit',
  'prefetch': 0,
  'stats': '{"load": "0.2 0.1 0.1", "disk": {"speed": "0.0/0.02 Mb/s", '
           '"usage": ["/:52", "/home:64", "/var/lib/docker:68", "/data:89", '
           '"/scratch:16", "/data/results:83", "/var/lib/postgresql:82"], '
           '"counter": "0.04/0.05 Gb"}, "network": {"speed": "0.01/0.25 Mb/s", '
           '"counter": "0.01/0.44 Gb"}}',
  'status': 'running',
  'worker_id': 1}]

The function are available in a consistent style:

Server class functions

workers

list the workers

worker_create_signal

send a signal (like pause, term, kill) for a task on this worker

worker_deploy

deploy a new worker

worker_get

retrieve a worker detail

worker_create

low level create worker (used internally, prefer worker_deploy)

worker_delete

delete a worker

worker_executions

list executions on a certain worker

worker_update

modify (update) a worker

workers_tasks

list tasks for a worker

The different function on other objects use the same consistent logic (tasks, task_update, task_create, etc... for tasks, executions, execution_update, etc... for executions). The technical documentation of scitq.lib is here

Server style : object or dict

The server object is a simple proxy to the different REST functions that call the API. The answer is provided as is natural in Python JSON in dictionary objects. However in some cases, object style, that is argparse.Namespace, provides a more natural way of coding:

from scitq.lib import Server
from pprint import pprint

s = Server('127.0.0.1', style='object')
for worker in s.workers():
    print(worker.name)

NB: style parameter default to dictionary style, style='dict'.

Asynchronous

scitq.lib has several goodies upon a basic REST client, and one of the best is that it is partially asynchronous. If the connection to the server is correct it will work in synchronous mode (and block on each query), but when a timeout occurs it will transparently switch to asynchronous mode (unless the server object was called with asynchronous=False option).

Asynchronous mode means that a special query thread will be opened and that all queries sending some information will be sent whenever possible. Queries will be executed in the same order as they were launched but the call instruction, like s.worker_update(...) will be non-blocking. Also, the objects or dictionaries (depending on style) returned by such queries will be lazy. Lazy means the object hold no real information, only trying to access to an attribute will trigger the real query - and will be blocking.

The get queries are always synchronous (as it is likely you'll need the information very soon after querying) and will block and retry as much as necessary, but not fail, if the server is down.

This makes any code using scitq.lib very resilient to a server crash.

There are two parameters to be more or less aggressive, in the Server object creator:

put_timeout

the time in second before switching to asynchronous when sending information (and also how frequently the query should be retried) (default to 30sec)

get_timeout

the time in second before retrying when getting information (default to 150sec)

So for instance if you want to have a resilient but very unaggressive code, you could:

from scitq.lib import Server

s = Server('127.0.0.1', put_timeout=60, get_timeout=300)

Example

This is an almost literal example of a real use case of scitq at GMT Science, using CAMISIM.

This suppose that:

• all the input files of CAMISIM were uploaded on s3://rnd/camisim/camisim1/<samplename>:
• config.ini,
• composition.tsv,
• metadata.tsv
• and id_to_genome.tsv
• the genomes (.fa files) were archived with tar and (pi)gzipped and uploaded to s3://rnd/resource/mygenomes.tgz,
• a private registry was set up and a docker (mainly CAMISIM public docker but with resources pre-downloaded) was uploaded to it.

We could generate almost 400 2x10M read samples in a few days with that.

Note the s.join() instruction at the end of the script. This instruction is reminiscent of threading.join() except it takes a list of tasks (such as returned by s.task_create) and can take a retry argument to relanch tasks a certain number of time.

import pandas as pd
from scitq.lib import Server

s=Server('myserver')
name='camisim1'
genome_source='s3://rnd/resource/mygenomes.tgz'
DOCKER_IMAGE='privateregistry01.container-registry.ovh.net/library/camisim-shared:1.3.0.7'

with open('samples.tsv','r') as sample_file:
  samples = pd.read_csv(sample_file, sep='\t', index_col=0)
tasks = []
for sample in samples.columns:
    s3base = f's3://rnd/camisim/{name}/{sample}'
    tasks.append(
        s.task_create(
            command=f"metagenomesimulation.py /input/config.ini",
            name=sample,
            batch=name,
            input=' '.join([f'{s3base}/{item}' for item in [
                    'composition.tsv','metadata.tsv','config.ini','id_to_genome.tsv']]),
            resource=f"{genome_source}|untar",
            output=f's3://rnd/results/camisim/{name}/{sample}/',
            container=DOCKER_IMAGE
        )
    )

s.worker_deploy(number=5,
    batch=name,
    region='UK1',
    flavor='i1-180',
    concurrency=9)

s.join(tasks, retry=2)

Since v1.2, create_task accept a shell optional argument, which default to False. If set to True, then the command is executed within a shell (sh shell). Shell command will be required:

• if you do anything complex such as chaining two commands with && or piping |,
• but also some simple stuff as shell expansion ls *.png,
• or if you use environment variables touch $OUTPUT/myemptyoutput.

Most of the time, using shell=True is harmless if not useful. However, first, we stick to python conventions, notably the behaviour of subprocess.run, and second, some dockers may not have a shell, in which case activating shell will trigger an error. What shell=True does is that it replace your by sh -c '<command>', but it makes the code look tidier. This also means that if your command contains single quotes ', it is quite unlikely to work and it will trigger a warning. You can also specify shell='bash' if you want a specific shell program. We recommand not to try fancy stuff such as shell='python', which might work but are prone to errors.

Recruiter objects

Recruiter objects are the low level objects implementing the recruitment rules of Workflow, see Workflow, their direct use using scitq.lib is however possible, but should be reserved to specific cases.

A Recruiter is attached to a batch (and thus may operate outside of Workflow use). A batch may have several strictly ranked Recruiters (only one Recruiter of a certain rank, starting by 1 and increasing, is allowed per batch, creating a new Recruiter for an already existing rank for a certain batch is the same as updating the old Recruiter if one existed before).

Each Recruiter has some triggering parameters:

• minimum_tasks : a minimal pending task number (which default to 0, trigger as soon as one pending task is there),
• maximum_workers : a maximum number of workers which is reached for this batch will untrigger the Recruiter.

Recruiters are listed sorted by their rank and apply one after the other if their triggering conditions are met. Thus the higher the rank, the more likely the maximum_workers condition is met.

When the Recruiter triggers it applies recruitment criteria:

• worker_flavor : (mandatory) flavor of Worker to recruit,
• worker_provider, worker_region: (optional) both are needed for deploy to occur, otherwise this is a "recycle only" recruiter. Note that setting both parameters will not prevent recycling, but make it considerably unlikely as if a recyclable worker is not immediately available a new deploy will occur,
• tasks_per_worker: (mandatory) dividing the pending task number by this figure will set the need number of worker (up to maximum_workers),
• worker_concurrency,worker_prefetch: this are settings for newly recruited workers (deployed or recycled). Contrarily to what happens with the workflow high level system, here worker_concurrency is not taken into account to estimate the number of needed workers, only tasks_per_worker is used.

Recruiters maybe manually created by scitq.lib.Server().recruiter_create() call.

Recruiters are linked to batch, deleting the batch will delete all its Recruiters.

Worker restitution upon idleness occurs independantly of Recruiters, Recruiters just add or update Workers.
